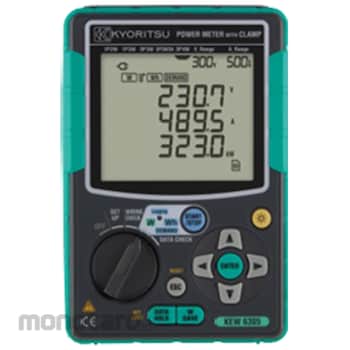

KYORITSU Power Meter
#Grup produk P103737874
Kondisi Barang:
Authorized Partner
Spesifikasi
| Wiring Connections | 1P2W, 1P3W, 3P3W, 3P3W3A, 3P4W |
|---|---|
| Measurment | Voltage, Current, Frequency, Active Power |
| Voltage Accuracy | ±0.2%rdg±0.2%f.s (sine wave, 45-65Hz) |
| Current Range [RMS] | ( 3000A type ) : 60.00 / 300.0 / 600.0 / 1500 / 3000A / auto |
| Current Accuracy | ±0.2%rdg±0.2%f.s + Accuracy of Clamp Sensor (sine wave, 45-65Hz) |
| Communication Interface | USB, Bluetooth |
| Dimensions (L x W x D) (mm) | 175x120x65 |
| PC Card Type | Sd Card |
| Power Supply | AC100-240V (50/60Hz)/LR6 x 6 |
| Voltage Range rms (V) | 150.0/300.0/500.0 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- Comprehensive real-time monitoring, recording and analysis of single and 3-phase systems - Voltage, Current, Power Factor and Frequency measurements - Power analysis (Active, Apparent and Reactive power) - Energy analysis (Active, Apparent and Reactive power) - Active power accuracy: ±0.3%rdg±0.2%f.s. - Automatic wiring check function to prevent incorrect connections - Large memory capability (2GB) using built-in SD card interface - Real time & remote measurements using Android application - synchronous measurements between two units of KEW 6305 - Wide selection of clamp sensors allow measurements from 0.1A to 3000A - The instrument automatically recognizes what kind of clamp sensor is connected to it - Windows software for data analysis and setting via USB port or Bluetooth
Feature
- KEW 6305 x 1 - KEW 8133 x 3 - 7141B (Voltage test lead set: 4pcs) x 1 - 7148 (USB cable) x 1 - 7170 (Power cord) x 1 - 8326-02 (SD card [2GB]) x 1 - 9135 (Carrying case) x 1 - PC Software x 1 - Battery x 6 - Quick manual x 1Dokumentasi Produk
