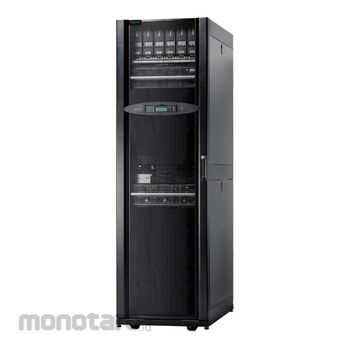

APC Symmetra PX 16kW All-In-One Scalable to 48kW without Batteries 400V
#Grup produk P103707527
Spesifikasi
| Output Power Capacity (kW/kVA) | 16.0/ 16.0 |
|---|---|
| Nominal Output Voltage (V) | 230, 400 3PH |
| Nominal Input Voltage (V) | 400 3PH |
| Input Connections | Hard Wire 5-wire (3PH + N + G) |
| Maximum Input Current (A) | 33 |
| Maximum Configurable Power (kW/kVA) | 48.0 / 48.0 |
| Battery Type | No internal battery - uses external battery system |
| Control Panel | Multi-function LCD status and control console |
| Input Frequency (Hz) | 40 - 70 |
| Input Power Factor at Full Load | 0.99 |
| Input Total Harmonic Distortion | Less than 5% for full load |
| Interface Port (s) | DB-9 RS-232, SmartSlot |
| Maximum Height (mm) | 1991 |
| Maximum Short Circuit Withstand (Icw) (KAmps) | 30 |
| Other Input Voltages | 380, 400, 415 |
| Other Output Voltages | 380, 400, 415 |
| Output Voltage Distortion | Less than 2% |
| Output Voltage Tolerance | +/-1% static and +/- 5% at 100% load step |
| Topology | Delta Conversion On-Line |
| Waveform type | Sine Wave |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Scalable power and distribution in a high-density, single-frame design. This high-efficiency 3-phase UPS scales as your data center grows up to 48kW/48kVA. Suitable ... Includes: Network Management Card, Start-Up Service
