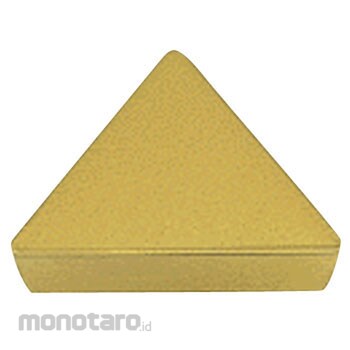

Mitsubishi Materials Insert TPMN
#Grup produk P103693899
Spesifikasi
| Breaker | None |
|---|---|
| Chip breaker | None |
| Clearance Angle (degree) | 11 |
| Corner Height Tolerance (mm) | ± 0.08 to ± 0.18 |
| Corner Radius (mm) | 0.4 |
| Corner Radius Re (mm) | 0.4 |
| Cutting Blade Length (mm) | 16.5 |
| Dimension D1 (mm) | 9.525 phi |
| Dimension S1 (mm) | 3.18 |
| Inscribed Circle Diameter (ɸ mm) | 9.525 |
| Inscribed Circle Tolerance (mm) | ± 0.05 ~ ± 0.13 |
| Material | HTi10 |
| Shape | Equilateral triangle 60° |
| TRUSCO Number | 119-4879 |
| Thickness (mm) | 3.18 |
| Thickness Tolerance (mm) | ± 0.13 |
| Type | Positive |
| With or Without Breaker | None |
| Work Material | Cast iron, non-ferrous metal |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Suitable for general finishing and milling of cast iron for semi- finishing of cast iron
