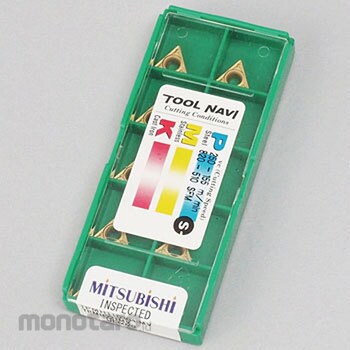

Mitsubishi Materials Insert TPMH
#Grup produk P103693880
Spesifikasi
| Cutting Blade Length (mm) | 11 |
|---|---|
| Clearance Angle (degree) | 11 |
| Thickness (mm) | 3.18 |
| Hole Shape | Partially cylindrical hole 70° to 90° one side |
| Corner Radius (mm) | 0.4 |
| Chip breaker | One side |
| Inscribed Circle Diameter (ɸ mm) | 6.35 |
| Inscribed Circle Tolerance (mm) | ± 0.05 ~ ± 0.13 |
| Shape | Equilateral triangle 60° |
| Thickness Tolerance (mm) | ± 0.13 |
| With or Without Breaker | Yes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
CVD coating with improved wear and fracture resistance due to special tough crystal structure. Suitable for continuous and interrupted cutting of steel.
Feature
Corner Height Tolerance (mm) : ± 0.08 to ± 0.18 Corner Radius Re (mm) : 0.4Ulasan Produk
