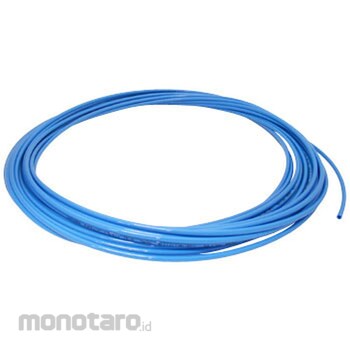

CHIYODA Touch Tube Te Series (Water-Resistant Polyurethane Tube)
#Grup produk P103667265
Spesifikasi
| Minimum Bending Radius (mm) | 5 |
|---|---|
| Fluid Used | Compressed air / water |
| Special mention | * Pressure values are measured at normal temperature (20 degrees Celsius). |
| Burst Pressure (MPa) | 3 |
| Operating Vacuum Pressure (kPa) | -100 |
| Maximum Operating Pressure (MPa) | (Compressed air) 0.8, (Water) 0.3 |
| Body Material | Polyurethane |
| Characteristic | Water resistant |
| Color Variants | Black, Blue |
| Inner Diameter (phi mm) | 2.5 |
| Length (m) | 100 |
| Mass (kg/m) | 0.009 |
| Operating Temperature Range (°C) | (Compressed air) -5 to 60, (Wed) 0 to 40 |
| Outer Diameter Accuracy (mm) | +/- 0.1 |
| Outer Diameter d (mm) | 4 |
| Outer Diameter x Inner Diameter (phi mm) | 4 x 2.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Outer diameter accuracy is excellent.Ulasan Produk
