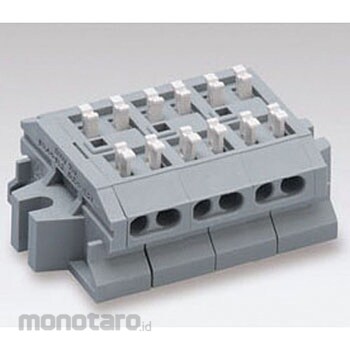

Sato Parts Screwless Terminal Block For Relay Ml-1700-B
#Grup produk P103666770
Spesifikasi
| End Plate | GY (gray) |
|---|---|
| Mechanism | With check hole |
| Type | SL terminal block for relay |
| Material (Insulator) | Body: Nylon 66 (UL94V-0) <br> Button: P.P.E (UL94V-0) |
| Standard Stripping Length (mm) | 10 |
| Conformity Standard | UL standard (for field wiring), CSA standard, TUV standard (IEC60947-7-1) |
| Connection Method | Screwless |
| Contact Resistance (miliΩ) | 20 or less (initial value) |
| Dimension A (mm) | 64.5 |
| Dimension C (mm) | 72.5 |
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Mounting Method | Direct attachment |
| Number of Poles | 6P |
| Rated Current (UL) (A) | 10 |
| Rated Voltage (V) | 300 |
| Terminal Pitch (mm) | 10 |
| Usable Wire Range | Single wire: phi 0.4mm to phi 1.2mm (AWG26 to AWG16), stranded wire: 0.3mm <sup> 2 </ sup> to 1.25mm <sup> 2 </ sup>, wire diameter phi 0.18mm or more |
| Withstand Voltage (V/minute) | AC2000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
For stranded wire and single wire. Can be used as a relay terminal block of up to 4 wires. Time can be shortened by improving the connection work efficiency, and there is no variation by the connection operator, and stable connection can be made. The panel is mounted using screws, so it can be used regardless of the plate thickness. It is a connection device for inside the device.Ulasan Produk
