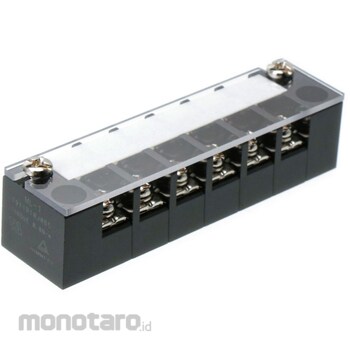

Sato Parts Screw Terminal Block
#Grup produk P103666743
Spesifikasi
| Height (mm) | 17.5 |
|---|---|
| Material | Main insulation (body) / phenol (UL94V-0), main insulation (cover) / polycarbonate (UL94V-0) |
| Terminal Pitch (mm) | 10 |
| Mounting Method | Direct attachment |
| Rated Voltage (V) | 300 (TUV standard 250) |
| Board Thickness (mm) | (Cover) 1.0 |
| Color (Body) | B (black) |
| Conformity Standard | UL standard, TUV standard (conforms to IEC60947-7-1) |
| Connection Method | screw |
| Dimension C (mm) | 1.5 |
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Number of Poles | 6P |
| Rated Current (IEC) (A) | 15 |
| Rated Current (UL) (A) | 15 |
| Screw Tightening Torque (N m) | 0.8 |
| Terminal screw | M3.5 x 8 |
| Withstand Voltage (V/minute) | AC2000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* When using as a standard product, check the restrictions on the standard. * When tightening terminal screws without connecting wires, use a torque of 0. * to 0. * N m. * Do not use an impact driver to tighten the screws, as this may cause damage to the screws. * When connecting the wires, screwing too tightly may damage the screw, so observe the tightening torque.Ulasan Produk
