A tool for cutting screws by milling.
Used in machining centers equipped with NC which has simultaneous 3-axis control and helical interpolation functions.
With less restrictions on cutting conditions than taps, stable tapping is achieved without worrying about chip control and lubricity of oils.

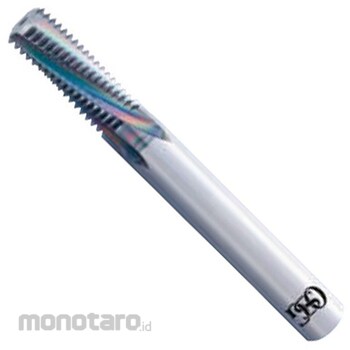

OSG One Revolution Thread Mill At-1
#Grup produk P103666141
Kondisi Barang:
Sebelum PPN:
Rp5.199.900 - Rp11.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Screw Type | M |
|---|---|
| Type | For female thread |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* Points when using coolant When using external lubrication, make sure that the cutting fluid is supplied into the holes.
If you are using a machining center with an internal lubrication device, we recommend to use a collet through type for supply.
Feature
Adopts unequal division / unequal lead groove and right blade left twist (PAT.inJapan). Due to the left twist groove, the effective diameter difference between the shank side and the back side was reduced, and the gauge out was delayed. Since processing starts from the shank side, processing with less tilt is possible (down cut recommended). Eliminates the need for zero cut to compensate for tilt. Preventing tilt enables one-pass machining instead of conventional two-pass machining, and shortening machining time and extending tool life. The base metal is made of ultra-fine cemented carbide that has both high abrasion resistance and toughness with EgiAs coating to achieve high durability.Dokumentasi Produk
