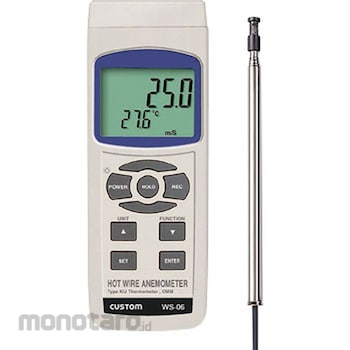

Custom Digital Wind Speed / Flow Meter
#Grup produk P103664569
Spesifikasi
| Power Supply | 6 AA batteries (included for testing) or AC adapter VSM-932EK (sold separately) |
|---|---|
| Measurement Range | [Wind speed] 0.70-18.00km / h (0.01km / h), 18.0-72.0km / h (0.1km / h), [Air flow] 0-54000m <sup> 3 </ sup> / min (resolution: area range Depends on the setting / area range: 0.001 to 30.000m <sup> 2 </ sup>)) |
| Weight (g) | Approx. 505 |
| Sensor Dimensions (mm) | [Expansion type wind speed sensor] phi 12 x 250-950 |
| Battery Life (hour) | Approx. 35 |
| Body Dimensions (W x D x H) (mm) | 68 x 45 x 177 |
| Measurement Range Wind Speed (m/s) | 0.20 to 5.00 (resolution: 0.01 m / s), 5.0 to 25.0 (resolution: 0.1 m / s) |
| Sampling | 1 time / sec |
| Temperature Measurement Range (°C) | Sensor head: 0 to 50 (resolution: 0.1 degrees Celsius), K type: -100 to -50.1 (resolution: 0.1 degrees Celsius), -50 to 1300.0 (resolution: 0.1 degrees Celsius) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Factories, research institutions, outdoor sites
Feature
Convenient for measuring small wind speeds due to the hot wire method. Measurement of air volume and temperature measurement with a thermocouple (K type sensor sold separately) are also possible. Convenient for measuring at high altitudes with extendable sensor probe (250-950mm). With MAX / MIN display function of measured value. With display hold function. With auto power off function. Wind speed display unit is m / s or km / h.Ulasan Produk
