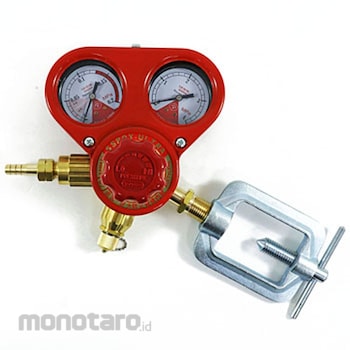

Yamato Ss Boy Ultra (For Acetylene)
#Grup produk P103661890
Spesifikasi
| Connection Diameter | Inlet side: ace frame connection / outlet side: 10phi hose mouth |
|---|---|
| Mass (kg) | 2 |
| Secondary Working Range (MPa) | 0.02-0.12 |
| Gas Used | acetylene |
| Low Pressure Gauge (MPa) | 0.2 |
| Acetylene Frame Dimensions (mm) | 66x55 |
| High Pressure Gauge (MPa) | 2.5 |
| Primary Side Operating Range (MPa) | ~ 1.55 |
| Standard Flow rate (m³/hour) | 2 (P1 = 0.4MPa, P2 = 0.05MPa) |
| TRUSCO Number | 281-6105 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
A dry safety device (automatic backflow / flashback prevention device) is built into the conventional regulator with a gauge guard, and the size and durability are the same as those of the conventional product.Ulasan Produk
