NEW STAR Door Closer 80 Series Parallel Type (With Stop)
#Grup produk P103652458
Spesifikasi

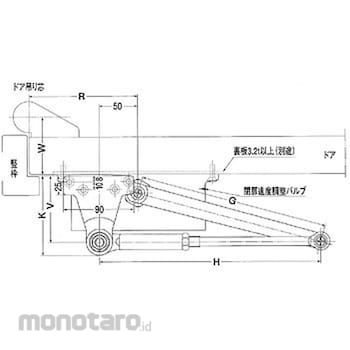

| Dimension G (mm) | 220 |
|---|---|
| Dimension V (mm) | 70 |
| Color | Silver |
| Dimension B (mm) | 190 |
| Dimension K (mm) | 85 |
| Applicable Door Mass (kg) | 45 or less |
| Applicable Door Height (mm) | 2100 |
| Applicable Door Width (mm) | 900 |
| Dimension A (mm) | 45 |
| Dimension E (mm) | 8 |
| Dimension F (mm) | 13 |
| Dimension H (mm) | 265 |
| Dimension R (mm) | 140 |
| Dimension S (mm) | 24.5 |
| Dimension W (mm) | 65 |
| Dimensions j (mm) | 19 |
| Series | Door closer 80 series |
| Shape | Standard bracket |
| Stop | Attached |
| Stop Angle | 70 degrees ~ 180 degrees |
| TRUSCO Number | 389-4002 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
For opening doors.
Feature
Compact body and robust itself. A long-selling orthodox type that emphasizes functionality. The closing speed can be easily adjusted with separate 1-speed and 2-speed valves. The main unit has no distinction between left and right and can be used for any of them if it is turned upside down. The cam type stop device is easy to set the angle.Ulasan Produk
