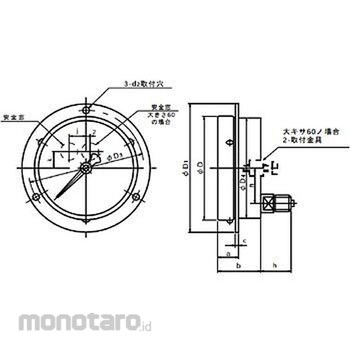

NAGANO KEIKI Normal Type Vacuum Gauge (D Frame / Embedded Type) 75 Phi
#Grup produk P103652342
Spesifikasi
| Material Co., Ltd. | YBsC3 |
|---|---|
| Type | Standard vacuum gauge |
| Material (Bourdon Tube) | C6872T |
| Size (Ø) | Ø75 |
| Accuracy | +/- 1.6% FS |
| Connection Screw (inch) | G3 / 8B |
| Call | DU G3 / 8 75x-0.1MPa |
| Case Shape | D type embedded type |
| Minimum Scale (MPa) | 0.002 |
| Pressure Range (MPa) | -0.1 |
| Weight (g) | 400 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Compatible with JIS B 7505-1 Bourdon tube pressure gauge. A pressure gauge with a structure that transmits the elastic deformation (movement) of the Bourdon tube to the pointer. Its simple structure makes it easy to handle. It can measure in a wide pressure range and is used in a wide range of fields.
Warning
* When selecting a pressure gauge, select a pressure range such that the upper limit of the normal pressure is within the following range so that the performance can be fully exhibited. For constant pressure: 3/4 or less of the maximum value of the pressure range For fluctuating pressure: 2/3 or less of the maximum value of the pressure range Please confirm. For details, see JIS B 7505-1Feature
- Standard conformity seal (model approval) is available. (Depending on size, accuracy, pressure range)-Wide pressure measurement range, and can also be used when corrosion resistance is required.Ulasan Produk
