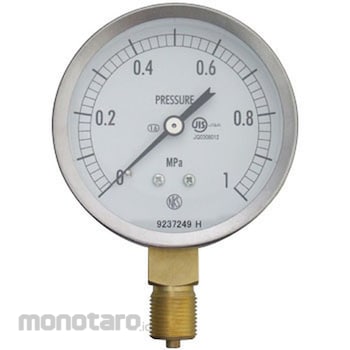

NAGANO KEIKI Pressure Gauge General-Purpose A Frame/Vertical 75 Phi (Manometer/ Alat Ukur Tekanan)
#Grup produk P103652306
Spesifikasi
| Performance | General, vibration proof (V) |
|---|---|
| Dimension H (mm) | 70 |
| Material | Glass / inorganic glass Case: Electrogalvanized steel sheet (SECC), black Cover / SUS430 / fabric |
| Accuracy | JIS 1.6 class (according to JIS Accuracy Class) |
| Minimum Scale (MPa) | 0.02 |
| Nominal Dimensions (mm) | phi 75 |
| Call | AT G3 / 8 75x1MPa |
| Case Shape | Vertical A frame |
| Connection Screw | G3 / 8 |
| Connection size | G3 / 8B |
| Dimension F (mm) | 18 |
| Dimensions d (mm) | 80.5 |
| Material (Bourdon Tube) | C6872T |
| Material Co., Ltd. | C3604BD |
| Measurement Fluid | Gas or liquid |
| Operating Temperature Range (°C) | -5 to 40 |
| Pressure Range (MPa) | 0-1 |
| Thickness (mm) | 35 |
| Weight (g) | 300 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
An inexpensive general-purpose pressure gauge compatible with the JIS B7505 -1: 2007 Bourdon tube pressure gauge for measuring pneumatic, hydraulic and other general pressures.
Warning
* When selecting a pressure gauge, select a pressure range such that the upper limit of the normal pressure is within the following range so that the performance can be fully exhibited. For constant pressure: 3/4 or less of the maximum value of the pressure range For fluctuating pressure: 2/3 or less of the maximum value of the pressure range Please confirm. For details, see JIS B 7505-1Feature
- It is a pressure gauge corresponding to JIS standard. -The case is made of galvanized steel sheet with anticorrosion action, so it has excellent corrosion resistance. -Since the outer frame is screwed, removal maintenance and marking can be done easily.Produk Terpopuler
