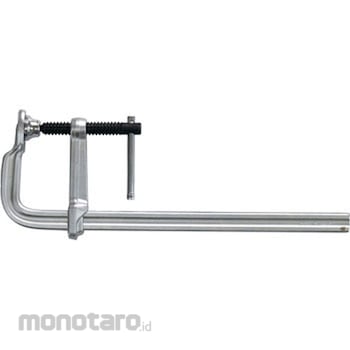

LOBSTER(LOBTEX) Vise Bar Handle Strong Type
#Grup produk P103650007
Spesifikasi
| Dimensions (mm) | 1000 x 119 |
|---|---|
| Dimension E (mm) | 15 |
| Mass (kg) | 4.7 |
| Overall Length (mm) | 1115 |
| Panning Angle (°) | 20 |
| Weight (g) | 4.7 |
| Body Material | steel |
| Dimension F (mm) | 29.4 |
| Dimensions d (mm) | 38 |
| Dish Diameter (mm) | 38 |
| Frame (mm) | 15x29.4 |
| Jaw Depth (mm) | 119 |
| Maximum Opening (mm) | 1000 |
| Maximum Tightening Force (kN) | 14.5 |
| TRUSCO Number | 125-8978 |
| Type | L clamp / F type clamp |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
For mounting, fixing and holding of materials
Warning
* Do not use as hanging or pulling equipment. * Please do not use scaffolding connection or scaffolding. * Please do not fix unstable such as protruding from the base material. * The maximum tightening force is the value when the opening is 150 mm and the screw is tightened at 40 Nm.Feature
Maximum opening is 2-3 times of standard type (BM) The body has moderate elasticity by special heat treatment and boasts high durability. The pan is large and can be tightened up to 20 degreess. Change the arm design from the old one Changed the surface treatment of the tightening screw to improve friction, improve seizure resistance, and increase tightening force. Work tightening force when tightening with the same torque has been improved.Ulasan Produk
