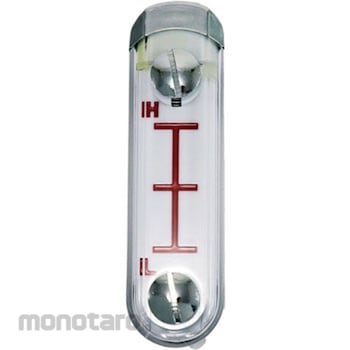

KOHO Oil Pot Window (Screw Type)
#Grup produk P103649490
Spesifikasi
| Dimension N (mm) | 15 |
|---|---|
| Dimension K (mm) | 8 |
| Dimension G (mm) | 20 |
| Dimension F (mm) | 16 |
| Mounting Method | Drill the screw holes according to the upper and lower holes (center of the mounting screw) and tighten the upper and lower screws for easy installation. <br> In this case, be careful not to overtighten the screws. (Tightening torque is approx. 15kgfcm) |
| Dimension H (mm) | 20 |
| Dimension L (mm) | 29 |
| Dimensions j (mm) | 4 |
| Dimensions m (mm) | 13 |
| Heat Resistance Temperature (°C) | Approx. 100 |
| Material | (Transparent cover) Polycarbonate, (white part) Oil-resistant material |
| Mounting Screw E | M10xP1.5 |
| Shape | Long form |
| Thickness C (mm) | 12 (excluding screws) |
| Type | Deluxe |
| Width B (mm) | 32 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
* Do not use washing oil, thinner, etc. when wiping paint. * Do not use cutting oil, chemical resistance (solvent resistance), water glycol, hot water, etc.Feature
The transparent body is made of super-hard special synthetic resin, so it will not be damaged by any impact Reflector repels oil and does not stain The reflector is white and the oil level display is clearly visible even in a slightly dark place 100 degrees Celsius for heatUlasan Produk
