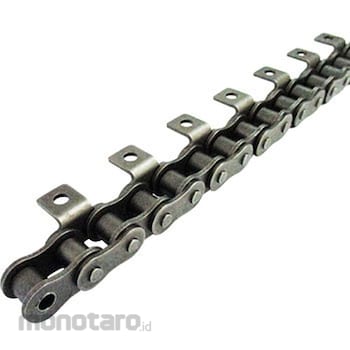

Katayama Chain Roller Chain With Attachment
#Grup produk P103648774
Spesifikasi
| Approximate Mass (kg/M) | 0.61 |
|---|---|
| Number of Columns | 1 |
| Chain pitch (P) (mm) | 12.7 |
| Dimension X (mm) | 12.7 |
| Maximum Allowable Tension (kN) | 2.75 |
| Additional Mass (kg) | 0.0014 (per attachment) |
| Dimension A (mm) | 8.07 |
| Dimension B (mm) | 9.48 |
| Dimension C (mm) | 7.9 |
| Dimension E (mm) | 5.8 |
| Dimension H (mm) | 11.7 |
| Dimension Y (mm) | 17.4 |
| Dimensions d (mm) | 3.97 |
| Dimensions o (mm) | 3.6 |
| Dimensions t (mm) | 1.5 |
| Material | Standard steel chain |
| Roller Link Inner Width (W) (mm) | 7.95 |
| Roller Outer Diameter D (mm) | 7.95 |
| Type | Chain with attachment |
| Unit Length (m) | 3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
High precision roller chain with attachment. Ideal for small conveyors with small pitch and high precision.Ulasan Produk
