KITAGAWA Work Gripper
#Grup produk P103622730
Spesifikasi
| Chuck Outer Diameter (phi mm) | 165 |
|---|---|
| Type | 3 claws |
| Nail bed | 3 nails |
| Mass (kg) | 16 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning

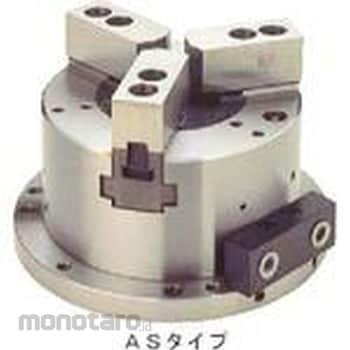

- Sample image (Please check the specifications of each part number for details).Feature
It can be easily mounted on drilling machines and milling machines. Powerful gripping and high accuracy achieved by one-chucking just by inserting air (using wedge mechanism). Hollow structure. Shared raw jaws. Piping not required Claw stroke: 5.2 mm Holding force (air pressure 0.6 MPa): 21KN Maximum operating air pressure: 0.7 MPa Nail pad: 3 clawsUlasan Produk
Tidak ada ulasan
