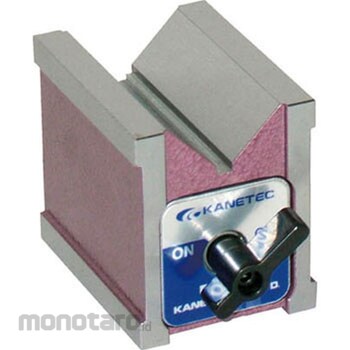

KANETEC Magnet V-Shaped Holder
#Grup produk P103614759
Spesifikasi
| Usable Diameter (phi) | 8 to 50 |
|---|---|
| Dimensions a (mm) | 38 |
| Dimensions b (mm) | 60 |
| Size | 60 x 73 x 180 |
| Type | V-Type Holder |
| Adsorption Power (N [kgf]) | 700 [70] or more |
| Dimension L (mm) | 180 |
| Dimensions h (mm) | 73 |
| Mass (kg) | 4.5 |
| TRUSCO Number | 336-4488 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Round bar marking, drilling, tapping, deformed objects, cutting tool. Holder for electrical discharge machining. CMM and various measurement and measurement system holders.
Warning
- Sample image (Please check the specifications of each part number for details).Feature
The top surface (V surface), bottom surface, and rear surface can be sucked. The switching lever is removable. (Hexagon socket opposite side is 8mm) Drip-proof and oil-proof structure.Ulasan Produk
