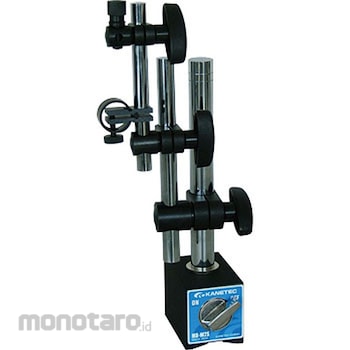

KANETEC Magnet Base (With Fine Adjustment)
#Grup produk P103614698
Spesifikasi
| Post 2nd Stage (mm) | 12 phi x 130 |
|---|---|
| Main Pillar Mounting Screw Base Side (mm) | M8 x 1.25 |
| Main Column Mounting Screw Main Column Side (mm) | M8 x 1.25 |
| Magnet Dimensions (mm) | 50 x 73 x 55 |
| Mass (kg) | 3 |
| Adsorption Power (N [kgf]) | 1000 [100] |
| Dial Gauge Mounting Hole (mm) | 4.5/6.5 |
| First Stage of supPort (mm) | 14 phi x 165 |
| Main Column Dimensions (Diameter x Length L) (mm) | phi 20 x 178 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Measuring instrument for measuring dimensions of machined workpieces on machine tool or iron surface plate with dial gauge type measuring device (detection of error and variation) mainly using comparative measurement Widely used as a holding tool.
Feature
There are a wide variety of models with various additional functions, from small to large, so that you can select according to the various conditions of the measurement location. Stable and accurate measurement work is possible with a powerful magnet and a solid clamping mechanism.Ulasan Produk
