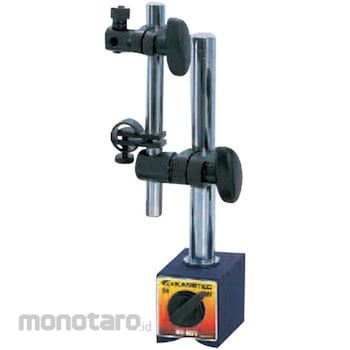

KANETEC Magnet Base (High-Precision Compatible with Fine Adjustment)
#Grup produk P103614689
Spesifikasi
| Main Column Dimensions (Diameter x Length L) (mm) | phi 20 x 178 |
|---|---|
| Main Column Mounting Screw Main Column Side (mm) | M8 x 1.25 |
| Prop Dimensions (Diameter x Length L) (mm) | phi 14 x 165 |
| Dial Gauge Mounting Hole (mm) | 6.5/8.1 |
| Mass (kg) | 2.7 |
| Adsorption Power (N [kgf]) | 1000 [100] adsorption Force, SS400, is the Thickness 10mm, the value of the grinding Surface Finish. |
| Magnet Dimensions (mm) | 50 x 73 x 55 |
| Main Pillar Mounting Screw Base Side (mm) | M8 x 1.25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Measuring instrument for measuring dimensions of machined workpieces on machine tool or iron surface plate with dial gauge type measuring device (detection of error and variation) mainly using comparative measurement Widely used as a holding tool.
Feature
A powerful magnet and a solid clamping mechanism enable stable and accurate measurement work. With fine feed, the position feed of the gauge can be adjusted by turning the dial.Ulasan Produk
