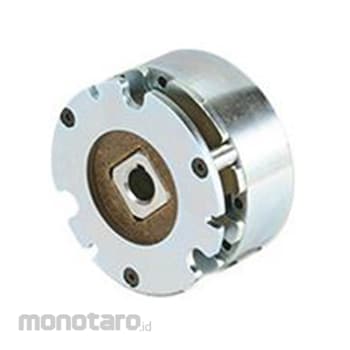

Miki pulley BXW Non-excited Operation Type Brake
#Grup produk P103587880
Spesifikasi
| Size | 3 |
|---|---|
| Type | For braking and holding |
| Dimension A (mm) | Radial direction: 56 |
| Dimension F (mm) | Radial direction: 14 |
| Dimensions s (mm) | Radial direction: 7 |
| Dimensions d (mm) | Radial direction: 19 |
| Dimension E (mm) | Radial direction: 17 |
| Dimension B (mm) | Radial direction: 48 |
| Static Friction Torque (N m) | 1.0 |
| Coil Voltage (V) | 24.0 |
| Screw Diameter (m) | M3 |
| Coil Capacity (W) | 9 |
| Coil Current (A) | 0.375 |
| Coil Resistance (ohm) | 64 |
| Dimension L (mm) | Axial direction: 12 |
| Maximum Speed (rpm) | 5000 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- Two types for braking and holding There are L type for braking and H type for holding with the same dimensions, so selection can be made according to the application. - Run-in operation with 100% rated torque is not required. From the beginning of use, the torque satisfies the rated value. - Long life Uses a friction material with high wear resistance and can withstand long-term use. - Low noise Noise reducing springs reduce the rattling noise caused by micro vibrations during rotation. -Stator internal / external use The heat source stator can be mounted either on the inner side or the outer side, so you can select the type that best suits your application.
