Kasuga Electric Power Push Button Switch
#Grup produk P103564180
Spesifikasi
| Type | Rainproof Type |
|---|---|
| Number of Buttons | 3 |
| Number of Poles | 3 |
| Rated Capacity (kW) | 200/220V-400/440V (3.7) |
| Insulation Resistance (MΩ) | Over 100 |
| Degree of Protection | IP64 |
| Ambient Temperature (°C) | -15 to +40 (with no icing or condensation) |
| Applicable Wire (mm²) | 3.5 |
| Button Letter | FOR (black), STOP (red), REV (black) |
| Case Material | ABS Resin (Ivory: 5Y7/1 Equivalent) |
| Connecting Terminal | M5 |
| Cover Material | ABS Resin (Ivory: 5Y7/1 equivalent) |
| External Dimensions (mm) | 224x80x88 |
| Mounting Location | The place shall not be subject to abnormal vibration or shock |
| Mounting Orientation | Attach to the vertical surface as follows. FOR button up, REV button down |
| Rated Carrying Current (A) | 30 |
| Relative Humidity (%) | 45 to 85 |
| Specification | Φ 14.2 Bushing Included |
| TRUSCO Number | 441-6147 |
| Withstand Voltage (V/minute) | AC2500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

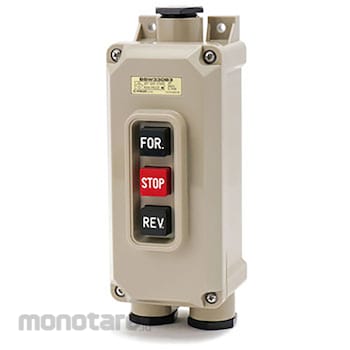

A small and robust push button switch widely used as a simple hand switch for heaters and electric motors. The opening / closing part adopts a highly reliable two-point connection method, enabling long-life and reliable opening / closing. It is a general type that is used by attaching to indoor machines and walls. For driving / stopping the motor. This structure has no harmful effects due to rainfall in the range of 60degrees from the vertical.
