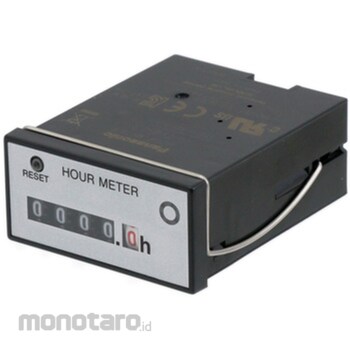

Panasonic Half-size Hour Meter
#Grup produk P103520964
Spesifikasi
| Operating Voltage (V) | AC240 |
|---|---|
| Measurement Time (hour) | 0 to 99999.9 |
| Specification | No reset button |
| Mass (g) | About 80 |
| Rated Voltage (V) | AC240 |
| Rated Frequency (Hz) | 50/60 shared (switching lever type) |
| Temperature rise | 55 ° C or less (measured by rated voltage, resistance method) |
| Operating Humidity Range | 85% RH or less (at 25 ° C, no condensation) |
| Insulation Resistance (MΩ) | (Between charged parts and non-charged parts) 100 or more (at 500 VDC megger) |
| Allowable Voltage Range (V) | 85% to 115% of rated voltage |
| Ambient Temperature (°C) | -10 to 50 (storage temperature is -30 to 60) |
| Power Consumption (W) | 1.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Small size (24x48mm) with a wide panel surface with reset button (TH64) Time display with plenty of time (TH63) Flat terminal is used for easy connection (# 187 flat connection terminal (receptacle) is crimped by a Japanese crimp terminal (Use the tool "YC-051") High-performance synchronous motor, with 50/60 Hz switching, with rotation display (counterclockwise, one rotation in 72 seconds). Application : Movement management of small generators and food processing machines Hour meter of leased equipment As maintenance management of various facilities
Feature
Flat connector: (Japan crimp terminal: LTO-41T-187N) x 2 Insulation sleeve: (Japan crimp terminal: 183523) x 2 (corresponding wire: 0.5 to 1.25mm2)Ulasan Produk
