Box type bath series with a built-in water tank.
PID control enables highly accurate and stable temperature control.
Built-in stirrer allows stirring while heating the sample or heating medium.
The operation switch uses a panel waterproof (IP67 compatible) type.

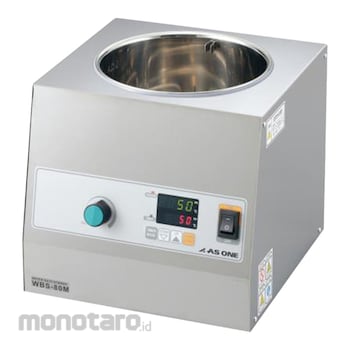

AS ONE Water Bath Stirrer
#Grup produk P103496375
Spesifikasi
| AS ONE Part Number | 2-7940-31 |
|---|---|
| Mountable Dimensions (mm) | 7-10 (thermometer) |
| Accessories | Stirrer (8 x 30 mm) x 1 |
| External Dimensions (mm) | 260 x 266 x 241 (excluding protrusions) |
| Body Material | Stainless steel (SUS430) |
| Frequency (Hz) | 50/60 |
| Heater Power (W) | 750 |
| Material (inside tank) | Stainless steel (SUS316) |
| Power Consumption (W) | 800 |
| Power Cord (m) | 2.5 (with 3P plug and 2P-3P conversion adapter) |
| Power Supply (V) | 100 (AC) |
| Rotation Speed (rpm) | -1 |
| Safety device | Excess temperature rise prevention device/overcurrent prevention fuse |
| Tank Internal Dimensions (mm) | 180x180 |
| Temperature Control Method | Microcomputer PID control |
| Temperature Display Accuracy (°C) | ±2 |
| Temperature Sensor | K thermocouple |
| Temperature Setting Range (°C) | 5 to 80 |
| Timer setting | 0 to 99 hours 59 minutes |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
NoteWhen directly stirring the sample, please use a container with a diameter of Φ100mm or less instead of using a drainboard.
