Since it is a mass flow meter, it is not affected by temperature and pressure.
Supports a wide range of applications, including analog output functions.
If you use the AC adapter conversion harness and AC adapter together, you can supply power from an AC outlet.
Hose fittings allow conversion of Rc1/4 threads to Φ10.5mm hose connections.

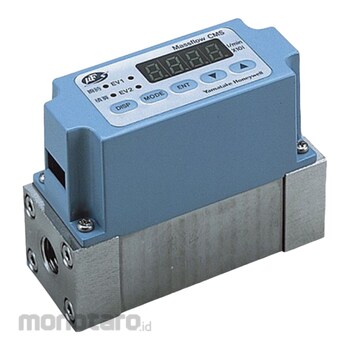

AS ONE Gas Mass Flow Meter
#Grup produk P103485120
Spesifikasi
| AS ONE Part Number | 6-9143-08 |
|---|---|
| Accuracy | Measurement accuracy (at 23°C 1 atm): 0.1 L/min (s) (s indicates the calibration standard [20°C, 1 atm air conversion]) |
| Mass (g) | 800 |
| Display | Minimum display value/display/resolution (instantaneous flow rate): ±3%RD±1digit (2 to 20L/min: 20L range) (5 to 50L/min: 50L range) ±1%FS±1digit (0.2 to 2L/ min : 20L range) (0.5 to 5L/min: 50L range) |
| Material | Wetted part material: Stainless steel (SUS303) |
| Dimensions (mm) | 91×37×69.6 |
| Flow Range (L/minute) | 50 |
| Measurement Object | Air/N2, Ar, carbon dioxide, city gas 13A (46MJ), city gas 13A (45MJ), methane, propane, butane |
| Port Size (Rc) | 1/4 |
| Rated Voltage (V) | 12-24 (DC) |
| Specification | SUS model |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
NoteFlow rate range calibration standard: 1 atmospheric pressure 20°C air conversion
