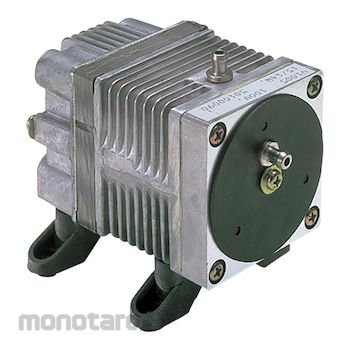

AS ONE Linear Vacuum Pump
#Grup produk P103484608
Spesifikasi
| AS ONE Part Number | 6-7741-01 |
|---|---|
| Depth (mm) | 91.5 |
| Current (A) | 0.35/0.3 |
| Height (mm) | 90 |
| Rated Frequency (Hz) | 50/60 (combined use) |
| Discharge Port Diameter (mm) | 6 (outer diameter) hose nipple |
| Dry Pump Type | Piston Type |
| Exhaust Speed at 50/60Hz (L/minute) | 7 |
| Intake Diameter (mm) | 6 (outer diameter hose nipple) |
| Mass (kg) | 0.7 |
| Power Consumption (W) | 15/14 |
| Power Supply | AC |
| Pump Type | dry |
| Ultimate Pressure (Pa) | -33300 |
| Ultimate Vacuum (kPa) | -33.3 |
| Voltage (V) | 100 |
| Width (mm) | 75 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
It uses a linear drive free piston system in which only the piston smoothly reciprocates inside the cylinder where the motor and compression unit are integrated. Small size, low operating noise, and light weight have been achieved. It is an oilless structure that does not require lubrication.
