A high-performance biological microscope with excellent durability for research and training.
A high-resolution CCIS(R) optical system EC plan achromatic objective lens is used to obtain a bright and clear contrast image.
A full-fledged Koehler illumination is used to reduce heat damage to the sample.
Reduces fatigue with a lens barrel based on ergonomics.
Since the operation system is placed at a low position, it can be operated with hands on the table.
The stage has excellent chemical resistance and durability.

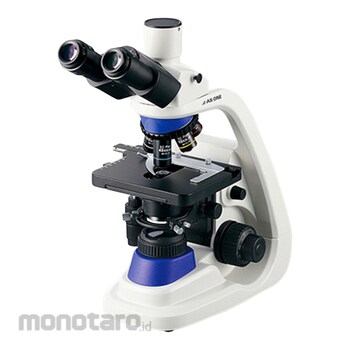

AS ONE Ec Plan Lens Biological Microscope
#Grup produk P103480480
Sebelum PPN:
Rp39.999.900 - Rp41.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Mass (kg) | 7.2 |
|---|---|
| Body Dimensions (mm) | 210×410×415 |
| Lighting Device Voltage (V) | 100 to 240 (50/60Hz) |
| Eyepiece | 10x (field number 20) |
| Overall Magnification | 40 to 1000× |
| Capacitor Type | Abbe formula NA1.25 (oil immersion) / 0.90 (dry) for Koehler illumination |
| Focus Adjustment | Single-axis coarse and fine movement method |
| Interpupillary Distance Adjustment Range (mm) | 55-75 |
| Objective Lens | EC Plan Achromatic Lens 4×/NA0.1・10×/NA0.25・S40×/NA0.65・S100×/NA1.25(oil) |
| Optical System | Infinity Color Correction (CCIS(R)) |
| Stage Dimensions (mm) | 175 x 140 (travel distance left/right 76, front/rear 50), holding 2 slides |
| Tilt Angle (°) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
