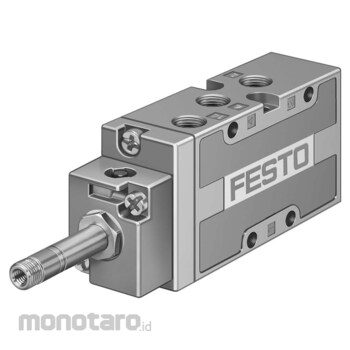

FESTO Air Solenoid Valve Classic (Katup Solenoid)
#Grup produk P103467984
Spesifikasi
| Valve Size (mm) | 5 |
|---|---|
| Flow Direction | Non-reversible |
| Operating Pressure (bar) | 2 to 10 |
| Ambient Temperature (°C) | -5 to 40 |
| Valve Function | 5/2-way, Monostable |
| Actuation Type | Electric |
| Lap | Underlap |
| Manual override | Non-detenting |
| Mounting Position | Optional |
| Operating Pressure (MPa) | 0.2 to 1 |
| Pilot Air Supply | Internal |
| Pneumatic working port | G1/8 |
| Reset Method | Mechanical Spring |
| Sealing Principle | Soft |
| Standard Nominal Flow Rate (L/minute) | 750 |
| Symbol | 991035 |
| Type of Piloting | Pilot actuated |
| Width (mm) | 26 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- Compact universal valve - Connection technology via electrical connecting plate (E-box) - High flow rate relative to its size - In-line valves can be used as individual valves or manifold valves
