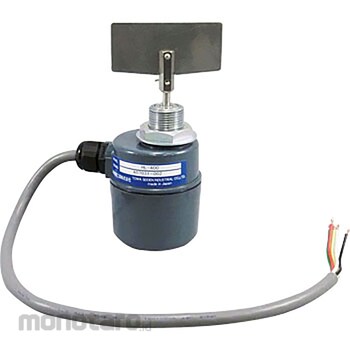

TOWA Small Paddle Level Switch
#Grup produk P103466727
Spesifikasi
| Mounting (inch) | 3/4 (Screw-in type/G PF) |
|---|---|
| Supply Voltage (V) | AC200 (50/60Hz) |
| Degree of Protection | IP55 equivalent |
| Output Contact | 1C contact AC250V6A (resistance load |
| Feather Dimensions (mm) | W-35x80 |
| Working PressureRrange (kPa) | 0 - 196 / In tank |
| Dimension L (mm) | 85 |
| Power Consumption (W) | 1.5 |
| Rotation Speed (rpm) | 1.0 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
- The definitive edition of stable detection & low cost models. - Number of achievements in the industry No.1. - Compact design, ideal for small tanks and hoppers! - All models are RoHS compliant.
Fitur
- Application : Please use it for level control of small tanks and small hoppers in the raw material factory - Material Shaft / Stainless steel / SUS304 flange / Case / Aluminum alloy seal / Nitrile rubber - Torque value (Ncm) :Detection / Approximately 4.9, slip / Approximately 24.5-29.4Ulasan Produk
