Hager Latching Relays Auxiliaries

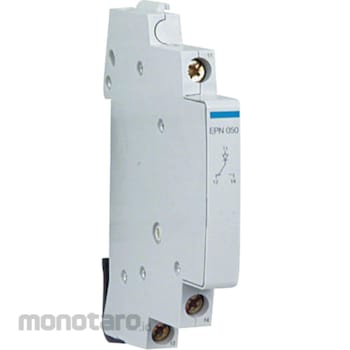

Auxiliaries for centralised control The EPN 050 allows the centralised control of several light sources which can be turned on or off simultaneously. The separate switching by pushing the pushbuttons, which are connected with the latching relay, remains possible. The EPN 052 allows an overall central control of individual central on/off EPN 050 Auxiliary contact A remote signalling can be realised with the auxiliary contact EPN 051. Auxiliary for control by maintained contact. When control devices with permanent impulse are externally driven, e.g. time switches or limit switches, an impulse control directly to the latching relay's coil is possible with the auxiliary contact EPN 053. Connection latching relay + auxiliary Several auxiliaries can be combined with the latching relay. Connection capacity -10mm2 rigid cables -6mm2 flexible cables
