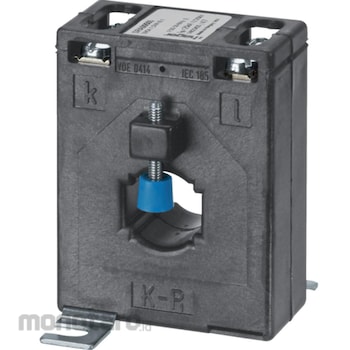

Hager Current Transformers (C.T.)

Current transformers are used to feed analogue and digital ammeters and energy meters. The current on the secondary circuit (0 - 5A) is propotional to the current on primary circuit The range of current transformers is composed of direct reading type, up to 30A and indirect reading type, via current transformers, from 50 to 2000A. The range is adapted to any type of mounting: edgewise or flat mounting,DIN-rail or backplate mounting. Technical data - secondary current : 5A - frequency : 50/60Hz - isolating voltage : 0.72kV at 3kV/50Hz/1s - primary current : In from: 50 to 2000A - continuous thermal current : 1.2xln (according to EN60044-1) - operating temperature : 40 to +40°C Connection capacity - rigid conductor 4mm2 - flexible conductor 4mm2 Complies with IEC60044-1
