Hager Electrical Interlocks

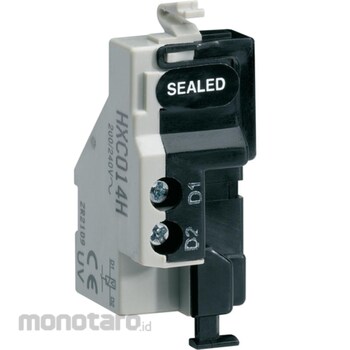

Accessories for MCCBs and trip-free switches h400-h630 Indication contacts - 1 changeover switch (ON/OFF): indicates the position of the MCCB is “open” or “close1’ - 1 changeover alarm contact: indicates MCCB tripping. Coil connection Connection capacity: 0,75mm2 flexible or rigid cables Optional connection cables. The cable capacity of the terminals is 0,5 to 1,25 mm2. Shunt trip Remotes tripping of MCCBs or trip-free switches. Operating voltage: 0,7 to 1,1 x Un Under voltage release Allows the tripping of MCCBs or trip-free switches when voltage level drop between 35 and 70% of Un. Pick up voltage 0,85 x Un Direct rotary handle - padlockabie - equipped with front cover and handle - fixing without any additional screw. Extended rotary handle - IP 55 - supplied complete with shaft and handle.
