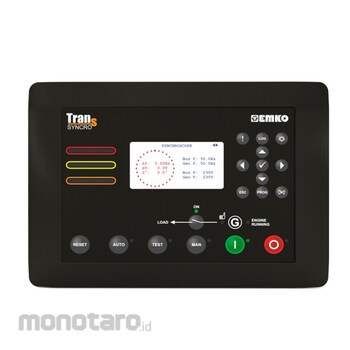

EMKO Automatic Generator and Synchron Load Sharing Control Panel (SYNC)

Multiple Generator load sharing, kW and kWAr load sharing, Busbar voltages and frequency measurements, Dead bus detection, Bara error detection, Load dependent auto start/stop, Generator synchron aging, Manual Voltage/Frequency adjustment, Automatic adjustment feature for governor and AVR, Volt/frequency and phase matching, Synchronization indication, Logic control function for PLC. Communication interface : USB programming and communication port, J1939 ECU and CanBus communication, CanOpen multiple communication, Ethernet, RS485. Inputs : 13 Digital Inputs, 4 Analog Inputs, Magnetic Pickup and Charge Alternator (D + (WL)) Input Outputs : 9 Transistors + 1 Relay output + 1 Relay Generator Contactor output Load Current Measurement : 3 Phase Current Transformer Input, 1x Earth Leakage Current Measurement Voltage Measurement : 3 phase Generator and Bar Cos-ɸ Measurement : 3 phase Generator Cos-ɸ measurement
