SKF Force Pull Puller Kit for Ball Bearings
#Grup produk P103232962
Spesifikasi
| Bearing Bore Diameter Range (mm) | 10-100 |
|---|---|
| Case Dimensions (LxHxW) (mm) | 530x85x180 |
| Coating | Black phosphated |
| Colour | Black metallic |
| Content | 6x sets of 3 arms, size A1 to A6;2x spindles, size S1 and S2;1x Spindle holder;1x printed Instruction for Use (language free);1x Carrying case (size X) |
| Effective Spindle Length (mm) | Spindle S1: 214;Spindle S2: 214 |
| Material | Medium carbon steels and alloy engineering steels, hardened and tempered |
| Max Bearing Depth (mm) | With arm A1: 135;With arm A2: 135;With arm A3: 137;With arm A4: 162;With arm A5: 167;With arm A6: 170 |
| Number of arms | 3 |
| Spindle Head, Hexagon Size (mm) | Spindle S1: 19; Spindle S2: 24 |
| Spindle Nose Piece | No |
| Suitable Bearing Type(s) | SKF Deep Groove Ball Bearings (DGBB's) |
| Suitable for Bearing Dismounting from Tapered Seating (conical shaft) | No |
| Suitable for Workpiece Dismounting from a Housing | No |
| Total Arm Length (mm) | Arm A1: 188;Arm A2: 189;Arm A3: 193;Arm A4: 226;Arm A5: 231;Arm A6: 236 |
| Total Number of Arms in Kit | 6 sets of 3 |
| Total Number of Spindles in Kit | 2 |
| Total Spindle Length (mm) | Spindle S1: 275; Spindle S2: 288 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Set Content: Puller arms A1-135mm (5.3in)x3, puller arm A2-135mm (5.3in)x3, puller arms A3-137mm (5.4in)x3, puller arms A4-162mm (6.4in)x3, puller arm A5-167mm (6.6in)x3, puller arms A6-170mm (6.7in)x3, the spindle and the nutx2, handlex1
Warning
Image may differ from product. See technical specification for details.Feature

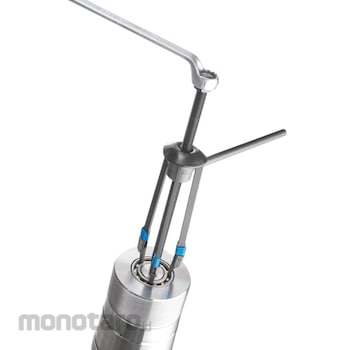

SKFTMMD100 is designed so that you can quickly and easily remove the ball bearing became an interference fit the inner and outer rings. This puller is ideal for removal of the bearing, which is incorporated in the housing and shaft. TMMD100 in addition to the withdrawal of the open-type bearings, can also be used for sealed bearings after the removal of the seal. Six types of arms set of size, two spindles and one handle has been housed in a carrying case. TMMD100 corresponds to the bearing of the shaft diameter 10 ~ 100mm, 71 kinds of size. Pawl is designed to be accurately mounted on the bearing raceway surface, provides excellent grip and high pull-out force. Easily mounted in a spring-loaded arm. Integrally molded of arms, realized strength and long life laser processed hardened steel. The pawl portion of the arm size 4,5,6, with the plate for adjusting the gap. Hex spindle nut is supplied with anti-slip pin spanner to prevent from coming off the spindle during withdrawal operations. It allows easy mounting that there is a limit to the angle of rotation of the pawl. Model number is laser engraved on the arm, easy to identify, can be selected.Dokumentasi Produk
