SKF Fitting Tool
#Grup produk P103232953
Spesifikasi
| Allowed Temperature for Mounting Object (°C) | -30-110 |
|---|---|
| Case Dimensions (LxHxW) (mm) | 530x110x360 |
| Content | 12x Impact rings A12x Impact rings B12x Impact rings C1x Impact sleeve A1x Impact sleeve B1x Impact sleeve C1x Hammer1x printed instructions for use1x Carrying case (size C) |
| Hammer Length (mm) | 315 |
| Hammer Material | Steel, PU |
| Hammer Type | Deadblow hammer |
| Hammer Weight (kg) | 0.9 |
| Hammer Width (mm) | 115 |
| Hammerhead | Sturdy polyurethane (PU) preventing damage to the sleeve heads |
| Models of Rings | Three, named A,B,C |
| Mounting Depth (mm) | A, 221 B, 221 C, 226 |
| Mounting Force Generation | Hammer |
| Number of Rings | 36 |
| Number of Sleeves | Three, named A,B,C |
| Provided with Handprotectors | No |
| Recommended Applications | For manual mounting of bearings, bushings, seals, rings, pulleys in industrial, construction and agricultural applications |
| Ring Material | Impact resistant polyamide (PA) |
| Sleeve Material | Glassfiber filled polyamide (PA) |
| Sleeve Outer Diameter (mm) | A, 25 B, 45 C, 66 |
| Sleeve Outer Lengths (mm) | A, 228 B, 235 C, 245 |
| Suitable for Bearing Mounting on a Sleeve (adapter or withdrawal) | Not recommended |
| Suitable for Bearing Mounting on a Tapered Seating (conical shaft) | Not recommended |
| Suitable for Workpiece Mounting in a Housing | Yes |
| Workpiece Bore Diameter (mm) | 10-55 |
| Workpiece Outer Diameter (mm) | 26-120 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

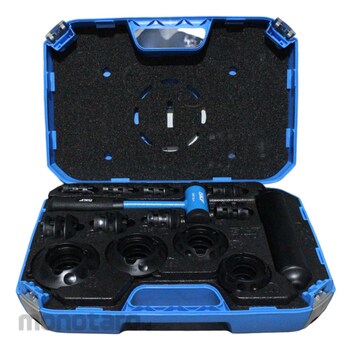

The TMFT 36 facilitates the mounting of different bearings with bore diameters from 10 – 55 mm (0.39 – 2.17 in). The right combination of impact ring and sleeve allows effective transmission of mounting force to the bearing ring with the interference fit, minimising the risk of damaging the bearing’s raceways or rolling elements. The TMFT 36 is also suitable for mounting other components such as bushings, seals and pulleys.
Warning
Image may differ from product. See technical specification for details.Feature
Early failure of the bearing, inappropriate built-in, such as use of unnecessary force accounted for 16% of the causes. SKF bearing built-in tool set, while reducing the damage risk of bearing to a minimum, has been designed to be quickly and accurately mounting the bearing. By combining the impact ring and the sleeve properly, effectively transmitting the force pushing interference fit in the bearing ring. To minimize the risk of damage to the bearing raceway surface and the rolling elements. In addition to the installation of the bearing, TMFT series, bush, seals, pulleys, etc., also suitable for mounting of other components. TMFT36 The set contains 36 pieces of impact ring, the TMFT24 contains 24 sheets of ring. In any of the set, three of the impact sleeve, it contains a shock-less hammer, also, has been housed in a lightweight carry case.Ulasan Produk
