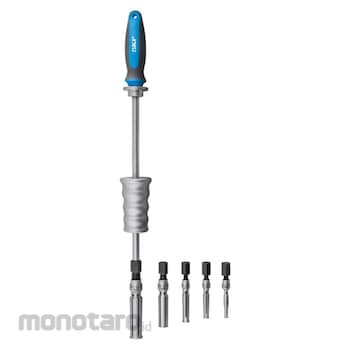

SKF Bearing Inner Ring Pull Puller (Treker Bearing)
#Grup produk P103232926
Spesifikasi
| Coating | Zinc coated, Black phosphated |
|---|---|
| Content | 5x Collets size C7-9 to C22-281x slidehammer, size S11x Printed Instructions for Use (language free)1x Carrying case (size X) |
| Material | Medium carbon steels and alloy engineering steels, hardened and tempered |
| Case Dimensions (LxHxW) (mm) | 530x85x180 |
| Dismounting Force Generation | Sliding hammer |
| Extractor Hexagonal Head Size (mm) | TMIC C7-9 to TMIC C12-15: 11 and 14, TMIC C17-20: 14 and 14, TMIC C22-28: 17 and 17 |
| Housing Depth (max) (mm) | TMIC C7-9: 54, TMIC C10-12: 56, TMIC C12-15: 62, TMIC C17-20: 70, TMIC C22-28: 90 |
| Material Handle | Slidehammer: thermoplastic elastomer |
| Needed Free Depth Behind Workpiece (mm) | TMIC C7-9: 3.0, TMIC C10-12: 3.0, TMIC C12-15: 4.0, TMIC C17-20: 5.3, TMIC C22-28: 6.7 |
| Recommended Applications | For the dismounting of bearings, gears, pulleys and other industrial ring shaped components in industrial, construction and agricultural applications with an interference fit inside a housing |
| Slide Hammer Total Length (mm) | 417 |
| Slide Hammer Weight (kg) | 1 |
| Special Features | Reversible armsSelflocking arms |
| Suitable Bearing Type(s) | All |
| Suitable for Bearing Dismounting from Tapered Seating (conical shaft) | No |
| Suitable for Workpiece Dismounting from a Housing | Yes |
| Total Extractor Length (mm) | TMIC C7-9: 86, TMIC C10-12: 89, TMIC C12-15: 112, TMIC C17-20: 106, TMIC C22-28: 135 |
| Total Number of Extractors in Kit | 5x : TMIC C7-9, TMIC C10-12, TMIC C12-15, TMIC C17-20, TMIC C22-28 |
| Total Number of Sliding Hammers in Kit | 1x :TMIP S1 |
| Width of Grip Internal (mm) | 7-28 |
| Workpiece Width (max) (mm) | TMIC C7-9: 13.3, TMIC C10-12: 46.5, TMIC C12-15: 54, TMIC C17-20: 59, TMIC C22-28: 90 |
