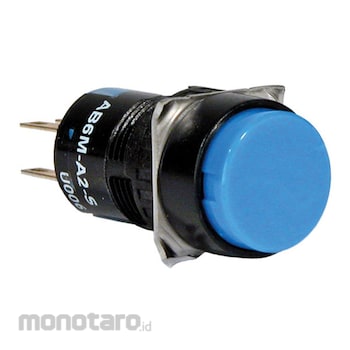

IDEC Miniature Push Button Alternate
#Grup produk P103210702
Spesifikasi
| Type | Non-Illuminated |
|---|---|
| Operation Method | Alternate |
| Contact Figuration | 2C |
| Button Shape | Circle |
| Mounting Hole Diamater (Φ mm) | 16 |
| Contact Resistance (miliΩ) | 50 or less (initial value) |
| Impact Resistance (m/s²) | (Durable) 500 |
| Insulation Resistance (MΩ) | 100 or more (at DC 500V mega) |
| Operating Ambient Humidity (%) | 45 to 85 RH (with no condensation) |
| Operating Ambient Temperature (°C) | -25 to 55 (do not freeze) |
| Shock Resistance Malfunction (m/s²) | 200 |
| Storage Temperature (°C) | -30 to 80 (but not frozen) |
| Terminal Shape | Solder Terminal |
| Vibration Resistance (Durable) Frequency (Hz) | 5 to 55, single amplitude 0.75mm |
| Vibration Resistance (Malfunction) Frequency (Hz) | 5 to 55, single amplitude 0.75mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Withstand voltage (V / min) : (Switch part) Between charged metal part and non-charged metal part: AC2000, between different pole terminals: AC2000, between same pole terminals: AC1000, between contact terminal and lamp terminal: AC1500, (illumination part) between charged part and earth: AC2000 lifespan : Mechanical: Over 1,000,000 times, Electrically: Over 100,000 times (switching frequency 1200 times / hour)
