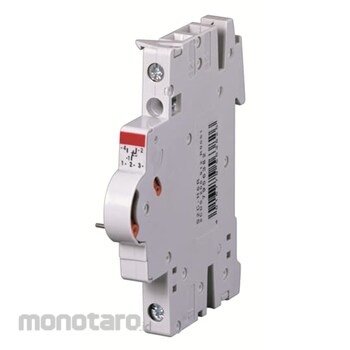

ABB Auxiliary Contact for Mini Contactor
#Grup produk P103196138
Kondisi Barang:
Bersertifikat SNI
Spesifikasi
| Connecting Capacity Auxiliary Circuit (mm²) | Flexible with Ferrule 1/2x1-2.5, Flexible 1/2x1-2.5, Rigid 1/2x1-4 |
|---|---|
| Conventional Free-air Thermal Current (A) | Auxiliary Circuit 6 |
| Degree of Protection | IP20 |
| Number of Main Contacts NC | 0 |
| Number of Main Contacts NO | 0 |
| Number of Poles | 2 |
| Rated Frequency (Hz) | Auxiliary Circuit 50, Auxiliary Circuit 60, Auxiliary Circuit DC |
| Rated Impulse with Stand Voltage (kV) | Auxiliary Circuit 6 |
| Rated Insulation Voltage (V) | 690 |
| Rated Operational Voltage (V) | Auxiliary Circuit 690 AC, Auxiliary Circuit 250 DC |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 60947-5-1, UL 60947-1, UL 60947-4-1 |
| Suitable for Product Class | Mini Contactors |
| Tightening Torque (N m) | Auxiliary Circuit 0.8-1.1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Indication Of The Position Of The Device’S Contacts. Suitable For Mcbs S 200 Series, Sn 201 Series, Rccbs F 200 Series, Rcbos Ds201, Ds202C, Ds 200 Series. To Be Mounted On The Right Side Of The Mcbs.
