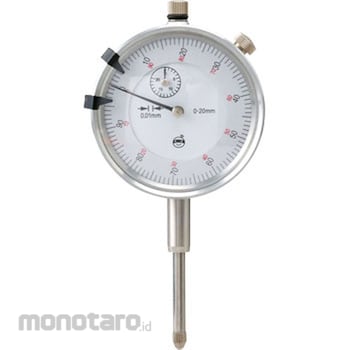

monotaro Long Stroke Dial Gauge
#Grup produk P103180331
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Dimension B (mm) | 80.5 |
|---|---|
| Repeat precision ( micro m) | Five |
| Dimension F (mm) | 17.5 |
| Eye amount (mm) | 0.01 |
| Measuring Force (N) | 2.0 or less |
| Dimension D (mm) | 16.3 |
| Dimension G (mm) | 34 |
| Dimensions a (mm) | 37.5 |
| Dimensions c (mm) | 58 |
| Dimensions e (mm) | 19.4 |
| Dimensions h (mm) | 53.5 |
| Dimensions j (mm) | 8.4 |
| Measuring Range (mm) | 0 to 20 |
| Memory Specifications | +/- 0-100 |
| Overall Length (mm) | 115.0 |
| Return error ( micro m) | 7.0 |
| The Outer Diameter (Ø mm) | 57 |
| The Stem Diameter (Ø mm) | 8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
Plane of irregularities, deflection of the shaft, the displacement measurement, such as squareness.
Warning
Please stop the use of outside applications. Or dropped, or hit, please do not disassemble or modify. Please do not lubricate. It will be the cause of the malfunction to attract dust and the like. . Storage is moisture, dust, please be in a place free of oil mist.Ulasan Produk
