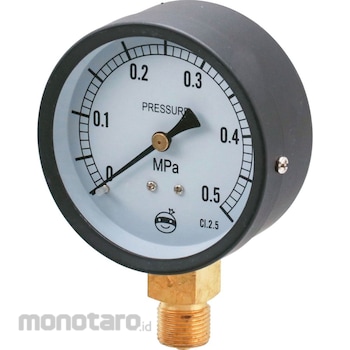

monotaro Pengukur Tekanan Serbaguna G / Vertikal / 75phi
#Grup produk P103176815
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Dimensions e (mm) | 15 |
|---|---|
| Material | Body: Steel / Connection: Brass (brass) / display scale cover: PC |
| Case Shape | Vertical collarless |
| The Outer Diameter (Ø mm) | 75 |
| accuracy(%) | 2.5 |
| Dimension B (mm) | 35 |
| Dimension D (mm) | 68 |
| Dimensions a (mm) | 77.5 |
| Dimensions c (mm) | 11.5 |
| Measurement Fluid | Pneumatic, hydraulic, other |
| The connecting portion screw | G3 / 8 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
Produk ini juga sering disebut dengan Vacuum Gauge
Warning
When removing the pressure gauge, please as pressure medium does not protrude sure to close the valve. . If pressure medium is oxygen, nitrogen, hydrogen is. "No oil processing" and please use a pressure gauge was . Since this product does not have a corresponding of the oil-free treatment, there is a case that oil inside is left, oxygen and reaction to fire, there is a danger to the explosion. . Please do not apply the maximum pressure (pressure of the maximum scale) or more of pressure. . Excessive pressure, vibration, please do not give a shock. . 10mm or more space is required around the explosion proof plug (sealing plug) of the pressure gauge. . Please use within the normal temperature range.Dokumentasi Produk
