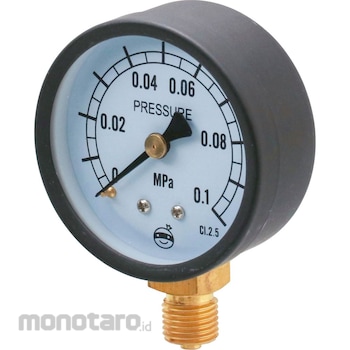

monotaro General-Purpose Pressure Gauge (G / Vertical / 60 phi)
#Grup produk P103176806
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| The Outer Diameter (Ø mm) | 60 |
|---|---|
| Material | Body: Steel / Connection: Brass (brass) / display scale cover: PC |
| Dimension D (mm) | 49.5 |
| Dimension B (mm) | 28.5 |
| The connecting portion screw | G1 / 4 |
| Accuracy (%) | 2.5 |
| Case Shape | Vertical collarless |
| Dimensions a (mm) | 60.5 |
| Dimensions c (mm) | 11 |
| Dimensions e (mm) | 13 |
| Measurement Fluid | Pneumatic, hydraulic, other |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
Pneumatic, hydraulic, Other commonly used pressure measurement.
Description
Pneumatic, hydraulic, Other commonly used pressure measurement.
Warning
- When removing the pressure gauge, be sure to close the valve so that the pressure receiving medium does not protrude. - If the pressure receiving medium is oxygen, nitrogen, or hydrogen, use a pressure gauge with oil- free treatment. - As this product is not oil- free, oil may remain inside and may react with oxygen and cause a fire or explosion. - Do not apply pressure higher than the maximum pressure (maximum scale pressure). - Do not apply excessive pressure, vibration or shock. - Provide a space of 10mm or more around the explosion- proof stopper (sealing stopper) of the pressure gauge. - Use within normal temperature range.Dokumentasi Produk
