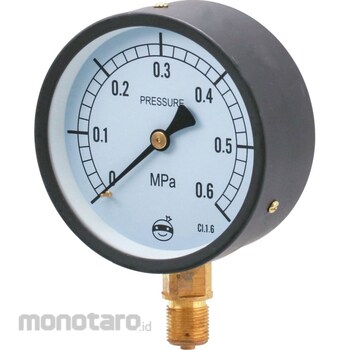

monotaro General-Purpose Pressure Gauge (G / Vertical / 100)) (Pengukur Tekanan)
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| The connecting portion screw | G3 / 8 |
|---|---|
| The outer diameter ( phi mm) | 100 |
| Dimensions c (mm) | 16 |
| Dimension B (mm) | 47 |
| Case Shape | Vertical collarless |
| Dimensions a (mm) | 100 |
| Dimension D (mm) | 78 |
| Dimensions e (mm) | 18 |
| Material | Body: Steel / Connection: Brass (brass) / display scale cover: PC |
| Measurement Fluid | Pneumatic, hydraulic, other |
| accuracy(%) | 1.6 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Deskripsi
Pneumatic, hydraulic, Other commonly used pressure measurement.
Warning
When removing the pressure gauge, please as pressure medium does not protrude sure to close the valve. . If pressure medium is oxygen, nitrogen, hydrogen is. "No oil processing" and please use a pressure gauge was . Since this product does not have a corresponding of the oil-free treatment, there is a case that oil inside is left, oxygen and reaction to fire, there is a danger to the explosion. . Please do not apply the maximum pressure (pressure of the maximum scale) or more of pressure. . Excessive pressure, vibration, please do not give a shock. . 10mm or more space is required around the explosion proof plug (sealing plug) of the pressure gauge. . Please use within the normal temperature range.Ulasan Produk
