Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
Maximum Operating Pressure (MPa) | 1 |
---|---|
Material (ball guard) | Zinc alloy |
Set Pressure Range (MPa) | 0.05 to 0.85 |
Proof Pressure (MPa) | 1.2 |
Auto drain Specification | With semi-auto drain |
Body Material | Zinc alloy |
Filter Drain Capacity (ml) | 80 |
Filtration rating ( micro m) | 5 |
Fluid | Compressed air |
Lid Material | Polyacetal |
Lubricator Oil Storage Amount (ml) | 125 |
Mounting Method | Bracket mounting |
Operating Temperature Range (°C) | 5 to 60 |
Pressure Gauge | With pressure gauge |
Recommended use oil | ISO VG 32 |
Screw Type | PT |
Set Pressure Unit | MPa |
Pilih jenis produk yang diinginkan
Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
---|---|---|---|---|
Loading... |
Informasi Produk
Deskripsi

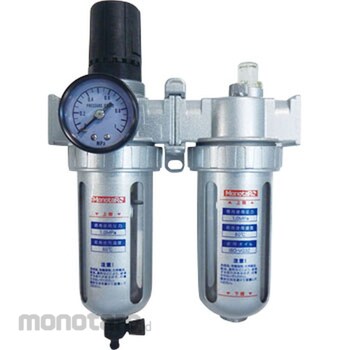

Pressure control removal outlet side of 5 micro m or more solid contaminants and the drain contained in the compressed air is available. Electromagnetic valve in the lubricator, you can lubrication by the oil mist to the cylinder.
Warning
Do not disassemble pressure adjustment knob part. It can cause air leakage.Ulasan Produk
