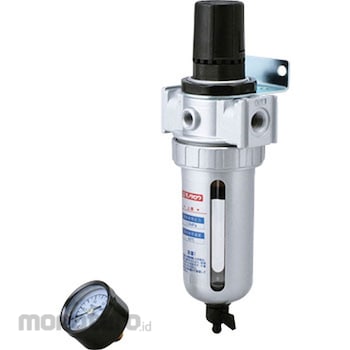

monotaro Filter Regulator (Semi-Automatic Drain)
#Grup produk P103175074
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Drainage unit Port size (Rc) | 43473 |
|---|---|
| Pressure gauge connection caliber | Rc1 / 8 |
| Maximum Operating Pressure (MPa) | 1 |
| Filtration rating ( micro m) | Five |
| Filter Drain Capacity (ml) | 80 |
| Accessories | Pressure gauge, bracket |
| Auto drain Specification | Semi-auto drain |
| Ball Material | Polycarbonate |
| Body Material | Zinc alloy |
| Bowl material | Polycarbonate |
| Case | Zinc alloy case with case guard |
| Filter | Semi auto drain |
| Fluid | Compressed air |
| Lid Material | Polyacetal |
| Material (ball guard) | Zinc alloy |
| Mounting Method | With bracket |
| Operating Temperature Range (°C) | 5 to 60 |
| Pressure Gauge | With pressure gauge |
| Proof Pressure (MPa) | 1.2 |
| Screw Type | Rc |
| Set Pressure Range (MPa) | 0.05 to 0.85 |
| Set Pressure Unit | MPa |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
And removal of 5 micro m or more solid contaminants and the drain contained in the compressed air, allowing pressure control of the outlet side.
Warning
Do not disassemble pressure adjustment knob part. It can cause air leakage. . Screws or the like for attaching the bracket is not included.Feature
Filter and regulator to realize an integrated space saving! Filter is also easy drainage because it is semi-automatic drain type. The drain automatically when not under pressure will be ejected. Manually allows the discharge of the drain when the pressure is applied.Dokumentasi Produk
