monotaro Crank Pulley Puller
#Grup produk P103172271
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi

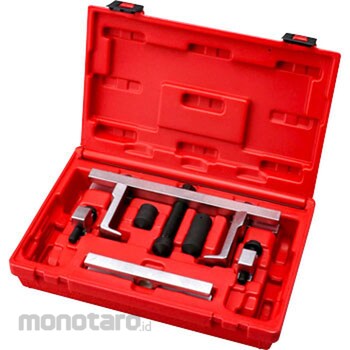

| Set Content | H-type plate small x 1, H-type plate large x 1, bolt x 2, extension bolt x 2, JAW arm x 2, extension adapter x 2, center bolt x 1, center bolt attachment small x 1, center bolt attachment x 1, Center bolt attachment large x 1 |
|---|---|
| Bolt (mm) | Extension bolt: M10 x 1.5 x L48 |
| Case Dimensions (width x depth x height) (mm) | 300 x 200 x 70 |
| Applicable Dimensions (mm) | Pulley size: phi 35-195 |
| Arm Dimensions (mm) | W38 x D72 (arm size), D17 x T4.5 (tip 3) (JAW arm size) |
| Mass (kg) | 3 |
| Material | S45C (H plate, bolt, attachment) / SCM440 (JAW arm, extension adapter) |
| Stroke Amount (mm) | 70 (Center bolt) |
| Width Across Flats (mm) | Center bolt: 17, Extension bolt: 15 |
| Working range (mm) | 35-114 (H type plate small), 118-195 (H type plate large) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Deskripsi
The removal of the crank pulley.
Warning
You may not be able to use Depending on the model. . It does not correspond to the impact wrench. . Please do not forget the application of grease to the shaft.Dokumentasi Produk
