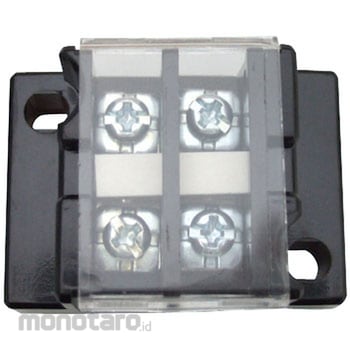

monotaro Assembly Terminal Block (20A)
#Grup produk P103168180
Kondisi Barang:
Bergaransi
Informasi selengkapnya terkait garansi
dapat ditemukan pada Rincian Produk
dapat ditemukan pada Rincian Produk
Garansi Produk: WARRANTY MonotaRO Private Brand (1 year)
Spesifikasi
| Wiring System | screw |
|---|---|
| Material | [Terminal base] phenol (black), [Cover] PC (transparent) / UL94-V0, [conductive plate] Brass (nickel plating), [the terminal screw portion Iron (chromate), [noted seal] Fiber |
| The number of poles | 5P |
| Terminal Screws | M3.5 |
| Dimension B (mm) | 62 |
| Dimensions a (mm) | 72 |
| Maximum Current (A) | 0.75mm <sup> 2 </ sup> wire: 10,1.25mm <sup> 2 </ sup> wire: 15,2mm <sup> 2 </ sup> wire: 20 |
| Mounting system | Directly attached |
| Rated Insulation Voltage (V) | 600 |
| RoHS Directive | Correspondence |
| Withstand Voltage (V) | 2500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Please use the rating applicable wire. . Please be sure to tighten so that the mounting screws are not loose. (Please stop excessive tightening)Dokumentasi Produk
