Autonics Rotary Encoder E80H Inkremental
#Grup produk P103150862
Kondisi Barang:
Authorized Partner
Spesifikasi
| Output Phases | A, B, Z |
|---|---|
| Starting Torque (gf.cm) | 200 (Maximum) |
| Resolution | 1024 |
| Accessories | Spring bracket |
| Connection Type | Radial Cable Type |
| Environment Ambient Humidity (%RH) | 35 to 85; Storage: 35 to 90 |
| Environment Ambient Temperature (°C) | -10 to 70; Storage: -25 to 85 |
| Level of Protection | IP50 |
| Maximum Allowable Revolution (rpm) | 3600 |
| Maximum Response Frequency (kHz) | 200 |
| Power Supply (V DC) | 12-24 (±5%(ripple P-P: max. 5%)) |
| Type | Incremental |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

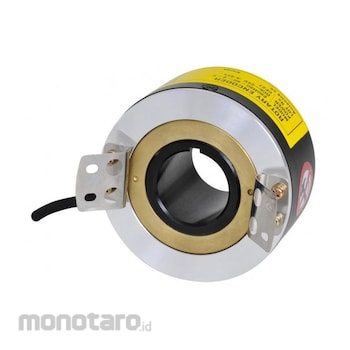

The E80H series incremental rotary encoders feature an Ø80 mm housing with a Ø30 or Ø32 mm hollow shaft. The encoder provides accurate measurement of angle, position, revolution, speed, acceleration, and distance and is available with a variety of output control options.
