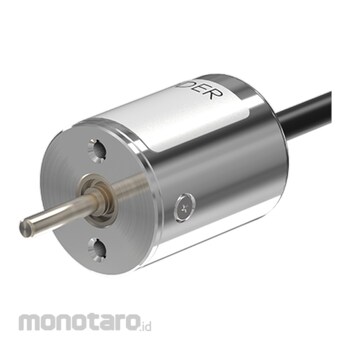

Autonics Rotary Encoders Incremental Type E15S Series
#Grup produk P103146832
Kondisi Barang:
Authorized Partner
Spesifikasi
| Accessories | Ø2mm coupling |
|---|---|
| Connection Type | Axial Cable type |
| Humidity Level | 35-85%RH, Enclosed space: 35-90%RH |
| Maximum Allowed Resolution (rpm) | 3000 |
| Outer Shaft Diameter (mm) | Ø2 |
| Control Output | NPN open collector |
| Environment Temperature Level (°C) | -10 to 70, enclosed space: -20 to 80 |
| Maximum Frequency Response (kHz) | 10 |
| Output Phase | A, B |
| Power Supply (V) | 5 DC ±5% (ripple P-P: Max. 5%) |
| Protection Level | IP50 |
| Resolution | 36P/R |
| Starting Torque (gf.cm) | Max. 10 (max. 0.00098N.m) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The E15S incremental rotary encoders are ultra-compact in size (Ø15 mm) and ultra-lightweight (14 g). The small size and light weight adds flexibility for application in tight or limited spaces. The low moment of inertia of the shaft minimizes the effect on the rotation of applied equipment. The encoders have a resolution of 36 P/R and maximum allowed revolution of 3000 rpm.
