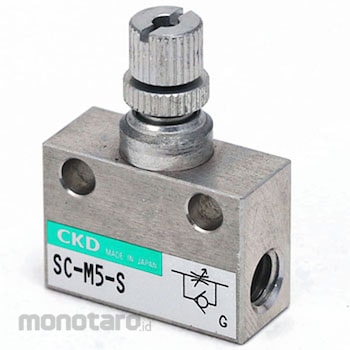

CKD Ultra Small Speed Controller SC-M5 Series
#Grup produk P103139531
Spesifikasi
| Fluid Temperature (°C) | 5 to 60 (but not frozen) |
|---|---|
| Mass (g) | 5.6 |
| Ambient Temperature (°C) | 0 to 60 (but not freezing) |
| Shape | straight |
| Minimum Working Pressure (MPa) | 0.1 |
| Working Fluid | Compressed air |
| Guaranteed Pressure Resistance (MPa) | 1.05 |
| Connection aperture (Rc) | M5 x 8 |
| Needle rotational speed | 10.0 |
| Maximum Working Pressure (MPa) | 0.7 |
| Compatible Cylinder Tube Inner Diameter (phi mm) | 6 to 25 |
| Effective Cross Section Area (mm²) | Free flow: 0.8.Control flow: 0.7 |
| Flow Rate ANR (L/minute) | Free flow: 53.Control flow: 47 |
| TRUSCO Number | 112-3505 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Dimension D (mm)=4.2, Dimension K (mm)=8, Dimension C (mm)=11.2, Dimension E (mm)=3.5, Dimension F (mm)=12, Dimension A (mm)=25 (max 28.5), Dimension B (mm)=13.5, Dimension H (mm)=6.5, Dimension I ( phi mm)=3.2, Dimension G (mm)=19, Dimension J (mm)=Dimension H (mm),
