CKD Super Micro Cylinder SCM Basic (Single Rod) Base SCM-00-50D Stroke 25
#Grup produk P103138082
Sebelum PPN:
Rp2.499.900 - Rp4.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Energy Absorption (J) | 1.6 |
|---|
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

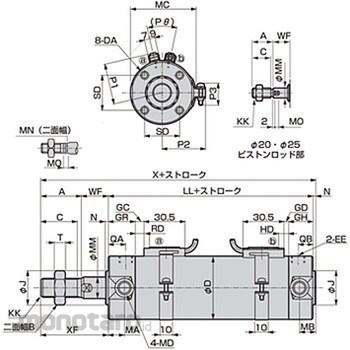

Simple design, overall length is short, easy to install work Dimension MN (mm)=17; Dimension D (mm)=58; Dimension N (mm)=2; Dimension T (mm)=11; Dimension B (mm)=27; Dimension SD (mm)=32; Dimension A (mm)=35; Dimension KK (mm)=M18 x 1.5; Dimension MO (mm)=8; Dimension MM (mm)=20; Dimension DA=M8 depth 16; Dimension MD=M12; Dimension MC (mm)=55; Dimension QB (mm)=12; Dimension EE=Rc1 / 4; Dimension XF (mm)=58; Dimension LL (mm)=90; Dimension MB (mm)=12; Dimension MA (mm)=13; Dimension QA (mm)=15; Dimension C (mm)=32; Dimension WF (mm)=23; Dimension X (mm)=150; Dimension J (mm)=30Ulasan Produk
